Short answer: a chain link fence alarm system is a sensor cable attached to the fence fabric, plus a processor that analyzes what the fabric does. Cutting, climbing and lifting each move the fence in a distinctive way. The processor recognizes those patterns, ignores wind and rain, and raises an alarm that names the zone — so a responder knows which run of fence to go to, not just that “something happened somewhere on the perimeter.”
What a fence alarm system actually is
Three parts, and it helps to keep them separate in your head:

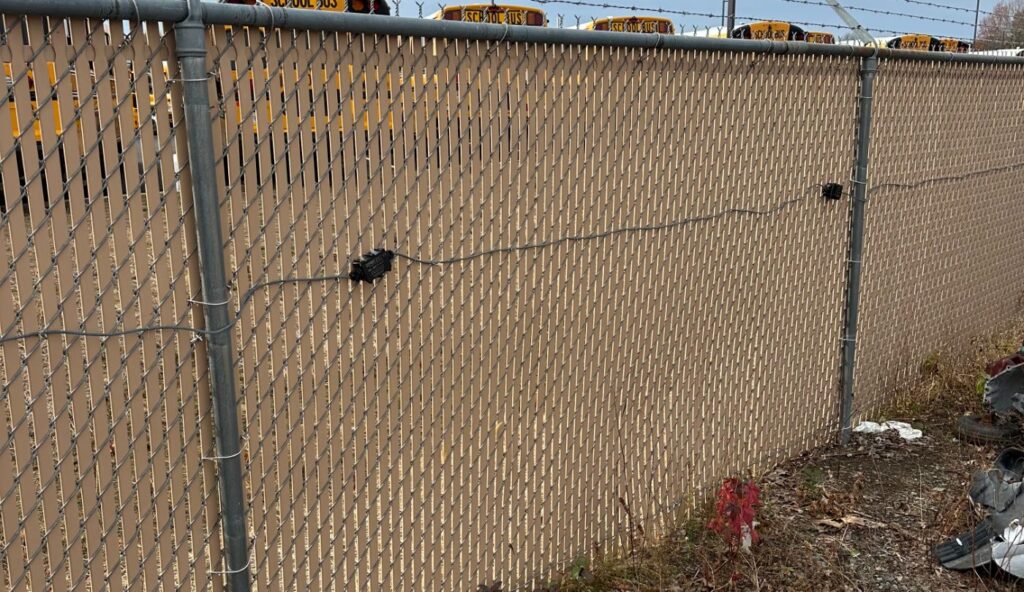

- The sensor — a cable clipped to the fence fabric along the full length of a zone. It converts the fence’s movement into a signal.
- The processor — a small enclosure on a fence post or in a cabinet. It reads each zone, decides what is an attack and what is weather, and outputs an alarm.
- The output — a dry contact to an alarm panel, an IP message to a VMS, or a signal to a monitoring center, so something actually happens when the fence is cut.
What it is not is a camera. A fence alarm detects; a camera confirms. The pairing is what makes an unmanned site workable — the sensor says “zone 3”, the camera turns to zone 3, and an operator makes a decision in seconds.
How the sensor tells a cut from a climb
A fence is a tensioned structure. Anything you do to it travels along the fabric as vibration, and different attacks have different signatures.
Cutting
Cutting chain link with bolt cutters produces a series of sharp, high-energy impulses, each one a wire strand releasing tension. The pattern is short, repeated, and unmistakably not weather. Most systems will alarm within the first few cuts — long before a person-sized hole exists.
Climbing
Climbing loads the fabric steadily and rhythmically: body weight transferring, hands and feet pulling the mesh. The signature is lower-frequency and longer than cutting, but sustained. A processor counts these events within a time window rather than firing on a single knock.
Lifting the fabric
The quiet approach — pulling the bottom of the chain link up and sliding underneath. It flexes a large area of fabric slowly. This is the attack that pure “shock sensor” devices tend to miss, and it is one reason a continuous sensor cable along the whole zone beats a handful of point sensors on posts.
What it should ignore
Wind loading, rain, hail, traffic vibration, aircraft, a dog running into the fence, and the neighbor’s gate slamming. Discrimination comes from two places: the processor’s analysis of frequency and duration, and adjustable sensitivity plus an event count per zone — so a single thump is logged, while three cuts in ten seconds is an alarm.
Chain link is not the only fence — match the sensor to the fabric
The single most common specification mistake is putting a chain-link sensor on a rigid fence. A welded mesh or palisade panel barely moves when it is cut, so a vibration-based cable has little to read. It needs a sensor that listens instead.
| Fence type | Right sensor | Why |
|---|---|---|
| Chain link, flexible mesh, welded wire on tension wire | IRONCLAD fence alarm system | Sensor cable reads fabric movement: cut, climb, lift. LPU-402 (2 zone) and LPU-404 (4 zone) processors, up to 305 m (1,000 ft) per zone |
| Welded mesh (358), palisade, wrought iron, rigid panels | MicAlert microphonic sensor cable | Microphonic cable picks up the acoustic signature of cutting a rigid section, where there is sound but almost no movement |
| Any fence, very long perimeters | RaySense AI DAS fiber optic sensor | One single-mode fiber optic cable becomes a continuous sensor up to 100 km, locating events to a few meters with no powered electronics along the fence |
Gates need their own treatment either way. A gate moves whenever it is opened, so it is normally given its own zone, or a dedicated gate contact, rather than being lumped in with the fence run beside it.
Zones: why “which zone” beats “alarm”
A zone is simply a length of fence handled as one detection segment — on IRONCLAD, up to 305 m (1,000 ft). Zones are the difference between a system people trust and one they mute.
- Response. “North fence, zone 2” sends a guard or a patrol to one place.
- Camera hand-off. A PTZ camera can be preset per zone and slew automatically.
- Diagnosis. If one zone produces nuisance alarms every windy night, you adjust or fix that zone, not the whole site.
- Cost. More zones means more processor channels. Most sites land on zone lengths of 100–300 m, shorter where the response needs precision.
A 2,400 m perimeter, for example, is eight zones of 300 m — four LPU-402 processors, or two LPU-404s, with the zone boundaries placed at corners and gates where a responder would naturally orient.
What actually causes false alarms
In practice, nuisance alarms almost never come from the sensor technology. They come from:
- Loose fence fabric. A fence that rattles in wind will trigger anything. Tensioning the fabric is a security upgrade, not just maintenance.
- Vegetation touching the fence. Branches and tall weeds drag on the fabric in wind. A cleared strip on both sides is the cheapest false-alarm fix there is.
- Loose signage and privacy slats. A flapping sign bolted to the fence is a vibration source sitting directly on the sensor.
- Cable not properly attached. Cable that sags or is over-tightened reads the fence badly. Mounting clips at consistent spacing matter.
- Sensitivity set once and never revisited. Sites change. A walk test after the first season of weather is worth more than any spec sheet.
Installation details that decide whether it works
- Attach the sensor cable to the fabric, not to the rails or posts, unless the manufacturer says otherwise — the fabric is what moves.
- Keep cable runs continuous through a zone; splices are potential weak points.
- Bring service loops and terminations into a weatherproof enclosure at the processor.
- Ground and surge-protect the processor. Fence lines are long conductive structures in open ground, and lightning finds them.
- Walk test every zone: cut simulation, climb, and lift at the two ends and the middle of the run, because sensitivity is rarely identical along a whole zone.
- Document the zone map. Six months later, “zone 5” has to mean something to somebody who was not there on install day.
Where these systems are actually installed
Chain link is the default perimeter across North America, so that is where most fence alarm systems live: police impound lots, truck and equipment yards, self-storage and RV storage, car dealerships, utility substations, oil and gas terminals, data centers and construction sites across the United States and Canada.
The same systems run on chain link and rigid fence internationally — solar parks in Poland and the Netherlands, a metal recycling plant in Belgium, factories in Greece, Portugal and Moldova, a power station in the United Kingdom, and industrial and residential sites across Mexico, Chile, Colombia, Ecuador and Peru. The fence changes; the physics does not.
Specifying a fence alarm system
- Fence type and condition — is the fabric tensioned, is there a rail, are there privacy slats?
- Perimeter length, number of gates, and where a responder would enter
- How many zones the response model actually needs
- Output required: dry contact, IP/ONVIF, VMS, SCADA or monitoring center protocol
- Power and communications at the processor location
- Environment: temperature range, lightning exposure, coastal salt, wildlife, vegetation
- Whether cameras will be slewed by zone, and who watches them
Frequently asked questions
A sensor cable is attached to the fence fabric along each zone. When someone cuts, climbs or lifts the fence, the fabric moves in a way that has a recognisable signature. The processor analyzes that signature, discounts wind and rain, and raises an alarm identifying which zone was disturbed.
Yes. Slats add wind loading, so the zone may need slightly different sensitivity settings and the slats themselves need to be secure. The sensor still reads the fabric, and in practice slatted fences are common on impound lots and storage yards that use this equipment.
On IRONCLAD, up to 305 m (1,000 ft) per zone, with 2-zone and 4-zone processors. Perimeters longer than a few kilometers are usually better served by a fiber optic sensing system, which runs up to 100 km on a single processor and pinpoints the event location rather than reporting a zone.
Yes, when they are installed and tuned properly. Discrimination comes from analyzing the frequency and duration of events rather than reacting to any movement, plus an adjustable event count per zone. Loose fabric and vegetation on the fence cause far more weather-related nuisance alarms than the weather itself.
It tells you the zone. A 2,400 m perimeter split into eight zones narrows a cut to a 300 m run of fence, which is enough to direct a patrol and to preset a camera. Distributed acoustic fiber optic systems go further and locate the event to within a few meters.
They do different jobs. Cameras record and let a human verify; they are poor at reliably detecting someone at a fence line at night, in weather, across a long perimeter. A fence alarm detects the attack at the boundary and points the camera at it. Most sites that rely on cameras alone end up with either missed intrusions or alarm fatigue.
