Short answer: the recommended perimeter security system for a solar farm is not one product but a layered system: a security fence with a fence-mounted intrusion detection sensor along the full perimeter, a second invisible detection layer (buried sensors or 3D LiDAR) at cable routes, inverters and gates, camera verification of every alarm, and a monitored response. On European sites the system must also fit three local realities: very long rural perimeters, GDPR limits on video surveillance, and the physical-resilience duties introduced by the EU Critical Entities Resilience (CER) Directive.
This guide explains each layer, when to use which detection technology, how to size it by perimeter length, and what European operators, EPCs and insurers now expect.
Why solar farms in Europe are being targeted
Europe’s solar fleet has become large, remote and valuable. The EU reached 406 GW of installed solar capacity at the end of 2025 after adding 65.1 GW in one year, and more than half of it is utility-scale ground-mounted plant, according to SolarPower Europe. Every one of those parks is an unmanned site full of copper.
The theft data follows the copper price:
- In the UK, DeterTech recorded more than 70 offences against solar farms between January and August 2024, with roughly 750 km of copper cable stolen in eight months. Cable theft made up 66% of incidents, panel theft just under one in five.
- Across renewable sites (solar, onshore wind, battery storage) DeterTech logged 169 offences in 2025, a 59% year-on-year increase, while copper rose about 25% from late 2025.
- Industry estimates put “major” solar thefts across the EU27 at around 5,000 per year.
- Sites that are hit once are very often hit again within months, usually as soon as the cable has been replaced.
The financial damage is rarely the copper itself. It is the weeks of lost generation, the crane and labor to re-pull DC strings, insurance excess, and – increasingly – a higher premium or a security condition written into the policy.
The layered blueprint: deter, detect, verify, respond
A perimeter system for a solar park works when each layer covers the weakness of the one before it.
Layer 1 – Physical barrier (deter and delay)
- Fence type: anti-climb welded mesh (358 mesh) or a tensioned high-security fence, 2.0–2.4 m high, rated to EN 1627 or LPS 1175 where the site risk justifies it. In rural areas many EU planning consents require wildlife gaps at the base; keep them under 20 cm so they cannot be exploited.
- Gates: one main vehicle gate, electrically locked, with an access log. A second “emergency” gate should be alarmed exactly like the fence.
- Vegetation strip: a clear 2–3 m strip inside the fence so detection sensors and cameras have a clean view.
A fence on its own only buys time. On a 5 km rural perimeter with no one around, a bolt cutter beats a fence in under a minute – which is why the next layer matters most.
Layer 2 – Fence-line detection (detect at the boundary)
A fence-mounted intrusion detection sensor turns the whole fence into an alarm and locates the attempt so the response goes to the right place. The correct sensor depends on the fence and the perimeter length:
| Perimeter | Fence | Recommended sensor | Why |
|---|---|---|---|
| Up to ~3 km | Chain link, flexible mesh | IRONCLAD fence alarm system | Plug-and-play sensor cable; detects cutting, climbing and lifting; 2- or 4-zone processors |
| Up to ~3 km | Welded mesh, palisade, rigid panels | MicAlert microphonic sensor cable | Listens for the sharp signature of a cut on rigid fences; ignores wind and rain |
| 3–100 km | Any fence type | RaySense AI DAS fiber optic fence sensor | One single-mode fiber optic cable becomes a continuous sensor up to 100 km with no electronics or power along the fence; locates the intrusion to a few meters |
For large European utility-scale parks – 50 MW and above, often 5–15 km of fence – the fiber optic option is usually the most economical because there is nothing to power, nothing to lightning-protect and nothing to steal along the fence line. RBtec’s AI processing classifies cutting, climbing and vehicle impact, which is what keeps nuisance alarms from wind and wildlife under control on open agricultural land.
Layer 3 – Invisible interior detection (detect what got past the fence)
Thieves rarely start at the fence. They start at the DC cable trenches, combiner boxes, inverter stations and the transformer compound. Protect those with a layer that cannot be seen or cut:
- RaySense LGDS buried fiber optic detection – a buried fiber optic cable that detects footsteps, vehicles and digging along up to 100 km and pinpoints each event. Ideal along internal cable routes and the strip between fence and array.
- Seismo unattended ground sensors – buried geophones (IP68, nothing above ground) that separate footsteps from vehicles; each analyzer covers roughly 80 m. Runs from a small solar panel and battery with an optional wireless link, which suits the far corners of a park with no cable back to the control room.
- PulseVi 3D solid-state LiDAR – scans a volume of up to 200–300 m at 30 frames per second and uses AI to distinguish humans and vehicles from animals, debris and weather. It works in complete darkness and does not capture a recognisable image, which matters under GDPR (see below). Typical placement: gate approaches, inverter stations, transformer compound and the area between the fence and the first array rows.
Layer 4 – Verification (turn an alarm into a decision)
Every alarm must be verified within seconds, or the monitoring center will start ignoring the site. In Europe this is where the system has to be designed carefully:
- Use thermal or low-light PTZ cameras that slew automatically to the alarm zone reported by the fence, buried or LiDAR sensor. The detection systems above all report the exact location, which is what makes camera-to-alarm hand-off possible.
- Choose camera analytics that classify (person/vehicle) rather than record continuously.
- Route alarms to a certified alarm receiving center (ARC) – EN 50518 in most EU countries – or to the operator’s own SCADA/VMS so the same operators who watch inverter output also watch intrusions.
Layer 5 – Response (make an intrusion pointless)
- Audio warning at the fence line triggered by the verified alarm.
- Documented response plan with keyholder or mobile patrol, and police notification via the ARC.
- Forensic marking of cable and panels plus visible signage – UK police data shows repeat targeting drops sharply when the site is known to be marked and monitored.
Sizing guide by solar park size
| Park size | Typical perimeter | Recommended core system | Add for high-risk sites |
|---|---|---|---|

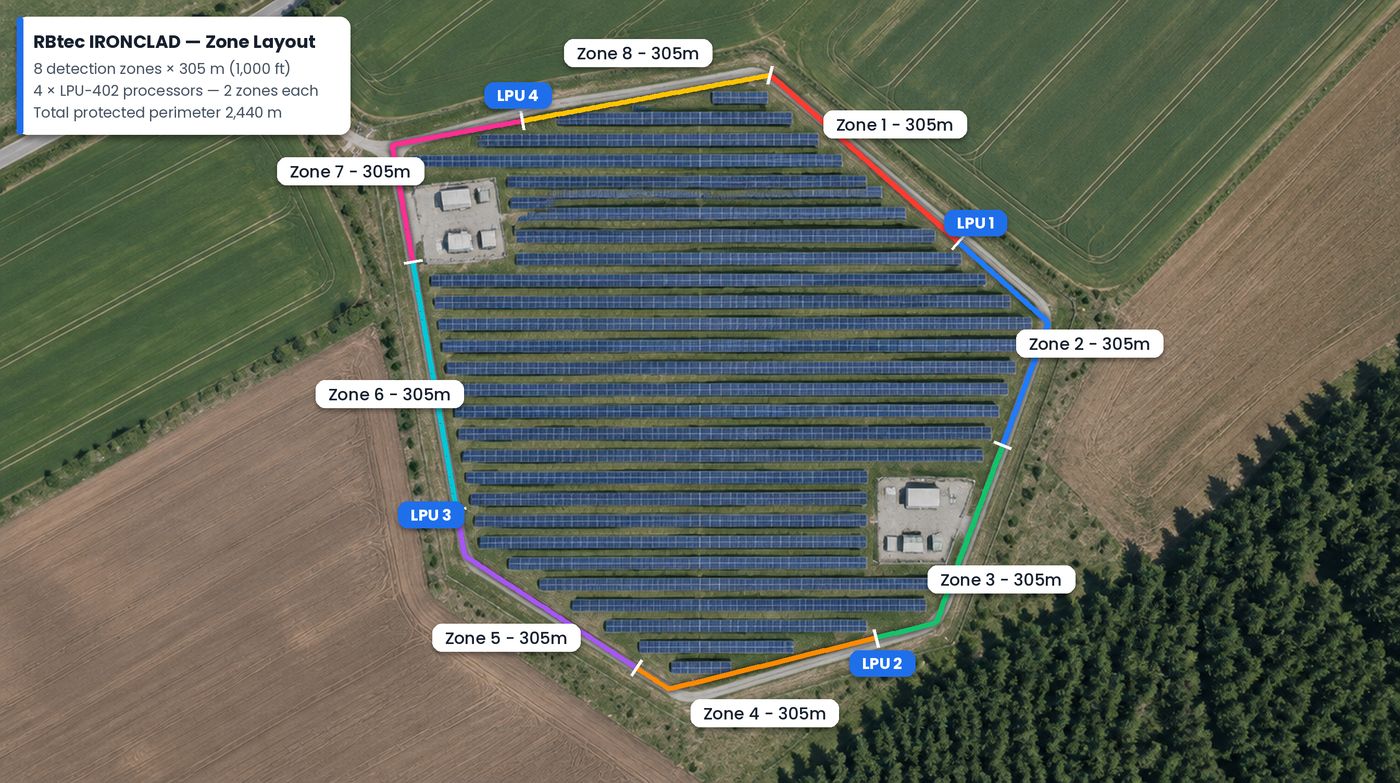

| 1–10 MW | 1–2.5 km | IRONCLAD or MicAlert on the fence, 2–4 zones, thermal PTZ at the gate | Seismo at inverter/transformer compound |
| 10–50 MW | 2.5–6 km | RaySense fiber optic fence sensor, thermal PTZ every 300–400 m | Buried RaySense LGDS along the main DC/AC cable route |
| 50 MW+ | 6–15 km+ | RaySense fiber optic fence sensor (one processor for the whole site) | PulseVi LiDAR at substation and gate approaches; buried detection at all cable corridors |
Two rules of thumb hold across all sizes:
- Detect at the fence, verify with cameras – never the reverse. Cameras alone on a multi-kilometer rural site generate more nuisance alarms than any monitoring center can handle.
- Locate, don’t just alarm. A system that says “zone 3, 1,240 m from the gate” cuts response time in half compared with “perimeter alarm”.
What European operators must get right
CER Directive: physical resilience is now a legal duty
Directive (EU) 2022/2557 on the resilience of critical entities (CER) covers the energy sector, including electricity generation, and had to be transposed by 17 October 2024. Entities identified as critical must have a resilience plan covering physical protection measures. Larger solar operators and portfolio owners are already being asked by national authorities, lenders and insurers to show a documented perimeter protection concept. A layered PIDS with an audit trail of alarms is the simplest way to evidence it.
GDPR and video surveillance
Continuous CCTV over a large area and any recording of public roads or neighbouring farmland creates a data-protection burden: legitimate-interest assessment, signage, retention limits and, in some member states, notification to the supervisory authority. Detection sensors do not process personal data – a fiber optic or seismic sensor records a vibration, not a face; 3D LiDAR records a point cloud, not an image. Designing the system so cameras are only activated on a verified sensor alarm keeps the site compliant and reduces storage and bandwidth.
Standards to reference in a tender
- EN 1627 / LPS 1175 – resistance class of fences and gates
- EN 50131 – intrusion alarm systems (the detection processors and alarm transmission)
- EN 50518 – alarm receiving centers
- EN 62676 – video surveillance systems
- IEC 60529 – IP rating of outdoor equipment (IP66/IP68 for buried and exposed sensors)
Insurance
European insurers now price theft risk into utility-scale solar premiums and increasingly require a perimeter intrusion detection system with remote monitoring as a condition of cover, particularly after a first loss. Providing the insurer with a site plan showing detection zones, camera coverage and ARC connection is routinely rewarded with better terms.
RBtec on European solar parks
This is not theory for us. RBtec sensor cable protects more than 400 solar sites for one renewable energy developer in Central Europe, using over 400 km of cable. Each site has a perimeter of roughly 1 km, covered by two 500 m MicAlert zones on a single processor, with camera call-up to the alarmed zone and alarm transmission to an offsite monitoring center. The full detail is in our solar park perimeter security case study.

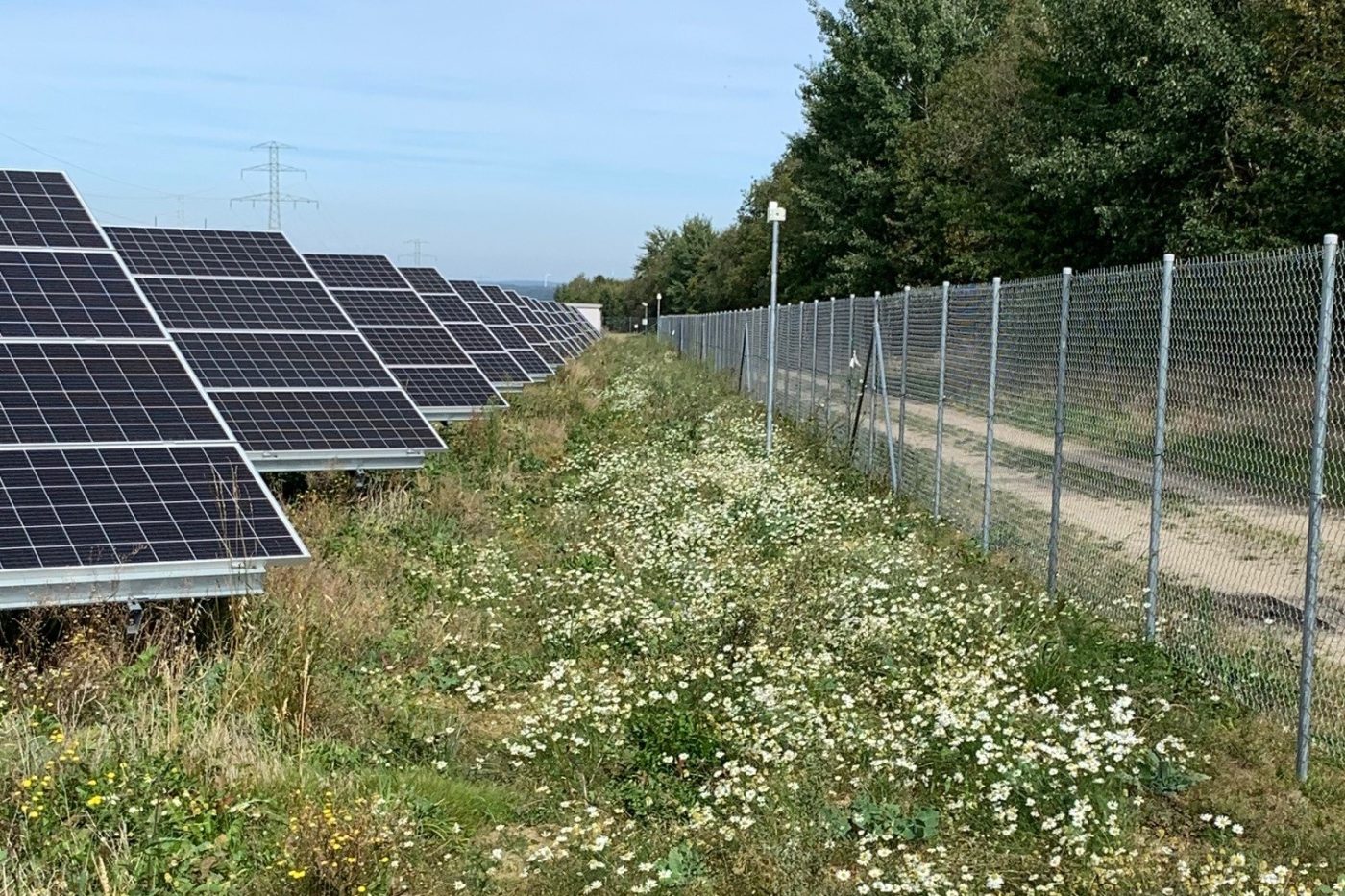

Beyond that program, RBtec fence-mounted detection is running on solar parks in Poland, Germany, the Netherlands, Italy and Greece, and on other European sites including a satellite ground station in Belgium, a power station in the United Kingdom and industrial facilities in Portugal, Moldova and Serbia. The photograph below shows IRONCLAD installed on the perimeter fence of a Polish solar park, with the sensor cable following the chain link fabric along the panel rows.
Design checklist for an RFQ
- Perimeter length, fence type and height, number of gates
- Terrain: flat/hilly, soil type (for buried sensors), vegetation
- Power and communications available at the fence line (or 100% solar/wireless required)
- Assets to ring-fence internally: inverter stations, transformer compound, cable corridors, O&M store
- Required alarm output: dry contact, ONVIF/VMS, SCADA, ARC protocol
- Monitoring model: own control room, third-party ARC, or hybrid
- Compliance: CER status, national GDPR guidance on CCTV, insurer conditions
Frequently asked questions
A layered system: a security fence with a fence-mounted intrusion detection sensor (fiber optic for long perimeters, IRONCLAD or MicAlert for shorter ones), buried sensors or 3D LiDAR protecting inverters and cable routes inside the site, cameras that verify each alarm automatically, and monitored response. No single technology is sufficient on a remote multi-kilometer site.
Costs scale with perimeter length and the number of verification cameras rather than with MW. As a guide, fiber optic fence detection becomes cheaper per meter than zoned copper sensors above roughly 3 km because it needs no field electronics or power. Ask for a quote per kilometer of fence plus a fixed cost per protected compound.
Modern sensors analyze the vibration signature rather than simple movement. Microphonic and fiber optic sensors with AI classification separate a cut or climb from wind loading and rain; buried seismic sensors separate footsteps from vehicles and ignore small animals. Correct installation and a clear vegetation strip matter as much as the sensor.
No. Cameras on a large rural perimeter produce constant nuisance events at night and in bad weather, and continuous recording of open land raises GDPR issues. The recommended design is sensor-based detection at the fence and inside the park, with cameras used to verify alarms.
Yes. Fiber optic fence and buried sensors need power only at the processor in the control room. Seismo ground sensors run from a small solar panel and battery with a wireless link, and PulseVi LiDAR draws under 11 W over PoE.
The CER Directive covers the energy sector, including electricity generation. Whether a specific park is designated a critical entity depends on national identification by each member state, but operators of large parks and portfolios should expect to demonstrate physical protection measures as part of a resilience plan.
Next step
RBtec has designed and manufactured perimeter intrusion detection since 1986 and protects solar parks in Europe and worldwide with fence-mounted, fiber optic, buried and 3D LiDAR detection. Send us the perimeter length, fence type and a site plan and we will return a layered detection design with zone layout and camera hand-off points. Contact RBtec or read how solar farm cable theft played out in Chile.
